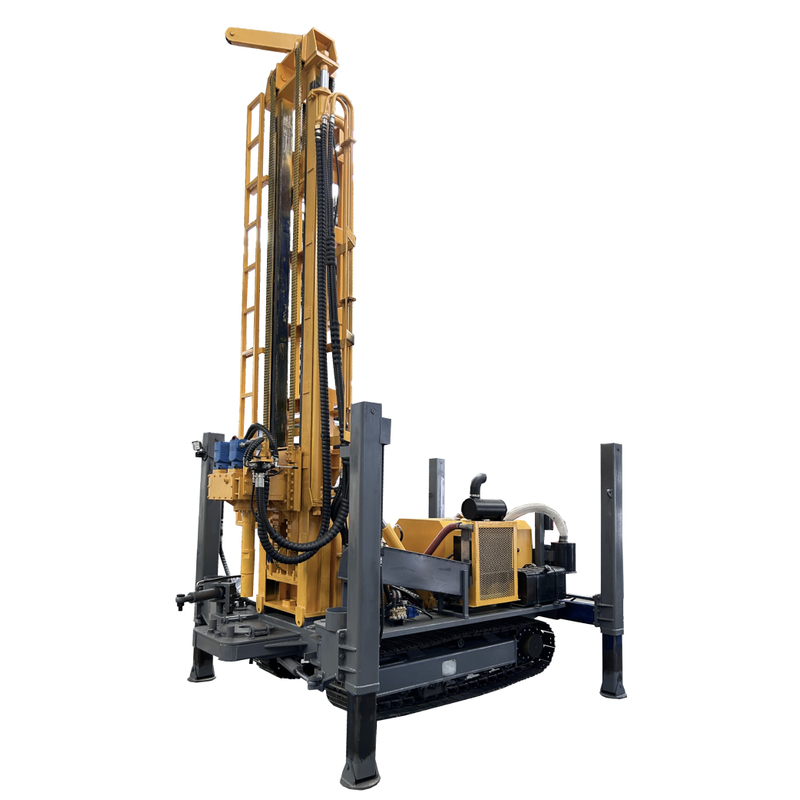

YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m

loading

YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m
YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m
YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m
YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m
YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m
YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m

YLZJ500 Cummins 600m Max Depth Steel Crawler Type Well Drilling Rig for Water Well 600m

$ 32000
5 0 Reviews

Availability:

  • YLZJ500

  • YOULI

Product Description
ItemYLZJ500
Maximum borehole depth600m
Hole diameter105-400mm
One-time advance length6.6m
Walking speed2.5km/h
Climbing ability20°
Working wind pressure1.7-3.5Mpa
Air consumption17-35m³/min
Length of drill pipe3/6m
Drill pipe diameter89/102mm
Max Lifting force38T
Max turning torque18000Nm
Rotational speed50-200r/min
Machine weight11000kg
EngineCummins6-cylinder 132KW
Oil pumpKawasaki 112 dual-plunger pump
Size5800(4380)*2050*2600mm
Manual valveSanli
Hydraulic power head8k-630
