Home » Products » Water Well Drilling Rig » YLZJ350A Light Machine 300 Meter Depth Yucahi 91KW Water Well Drill Rig Pump Air Compressor 350Meter

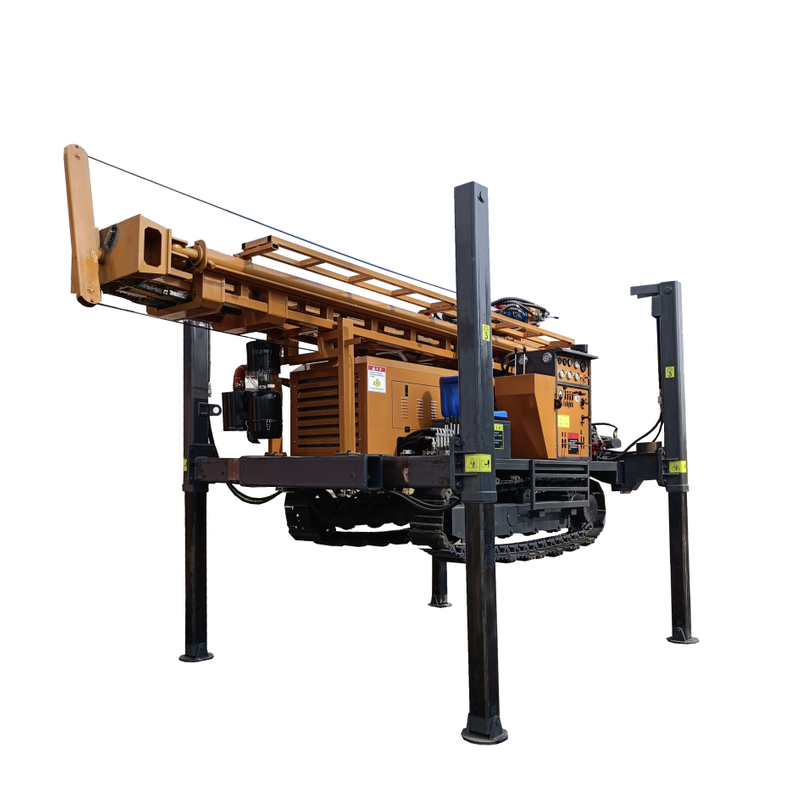

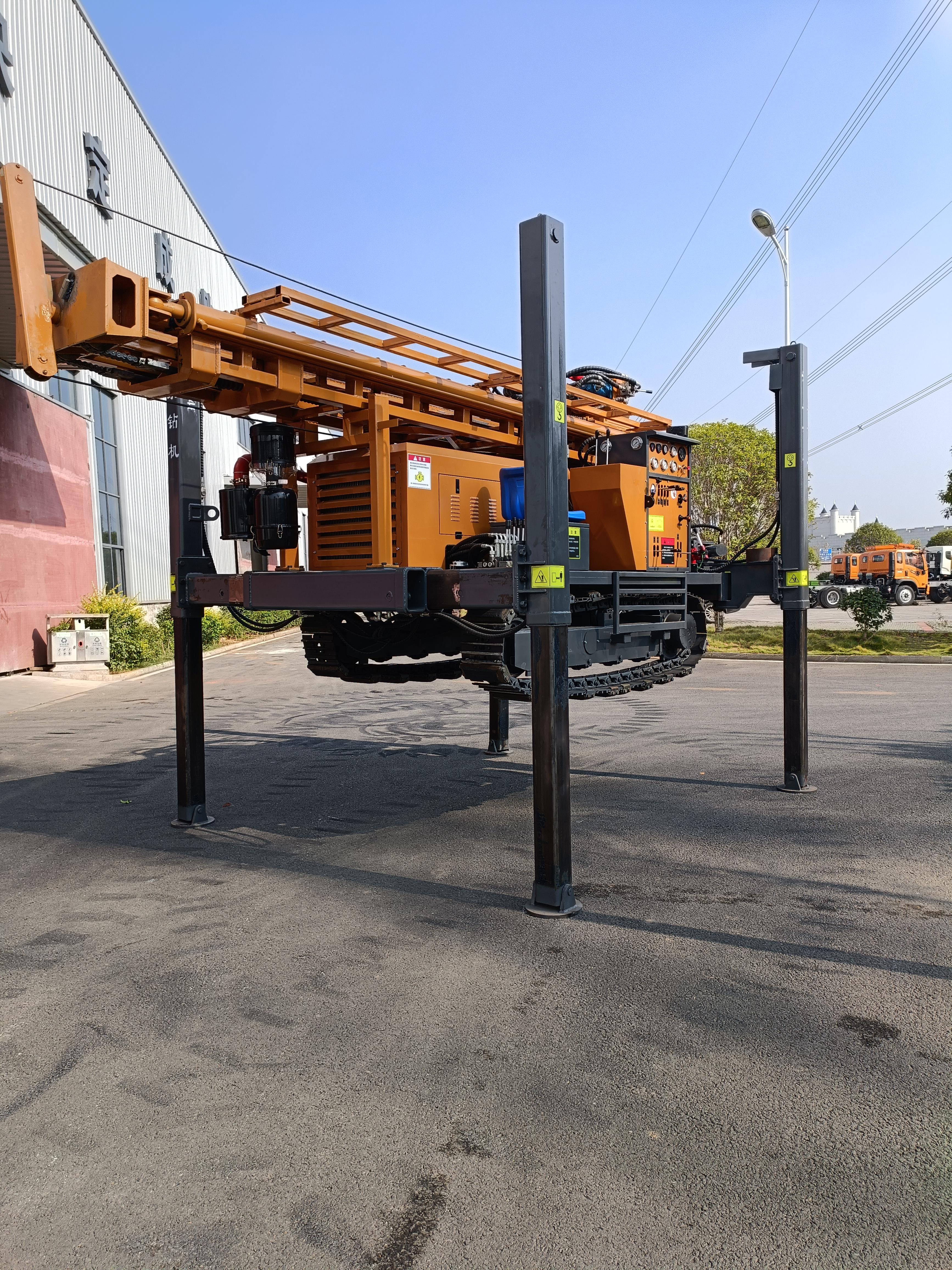

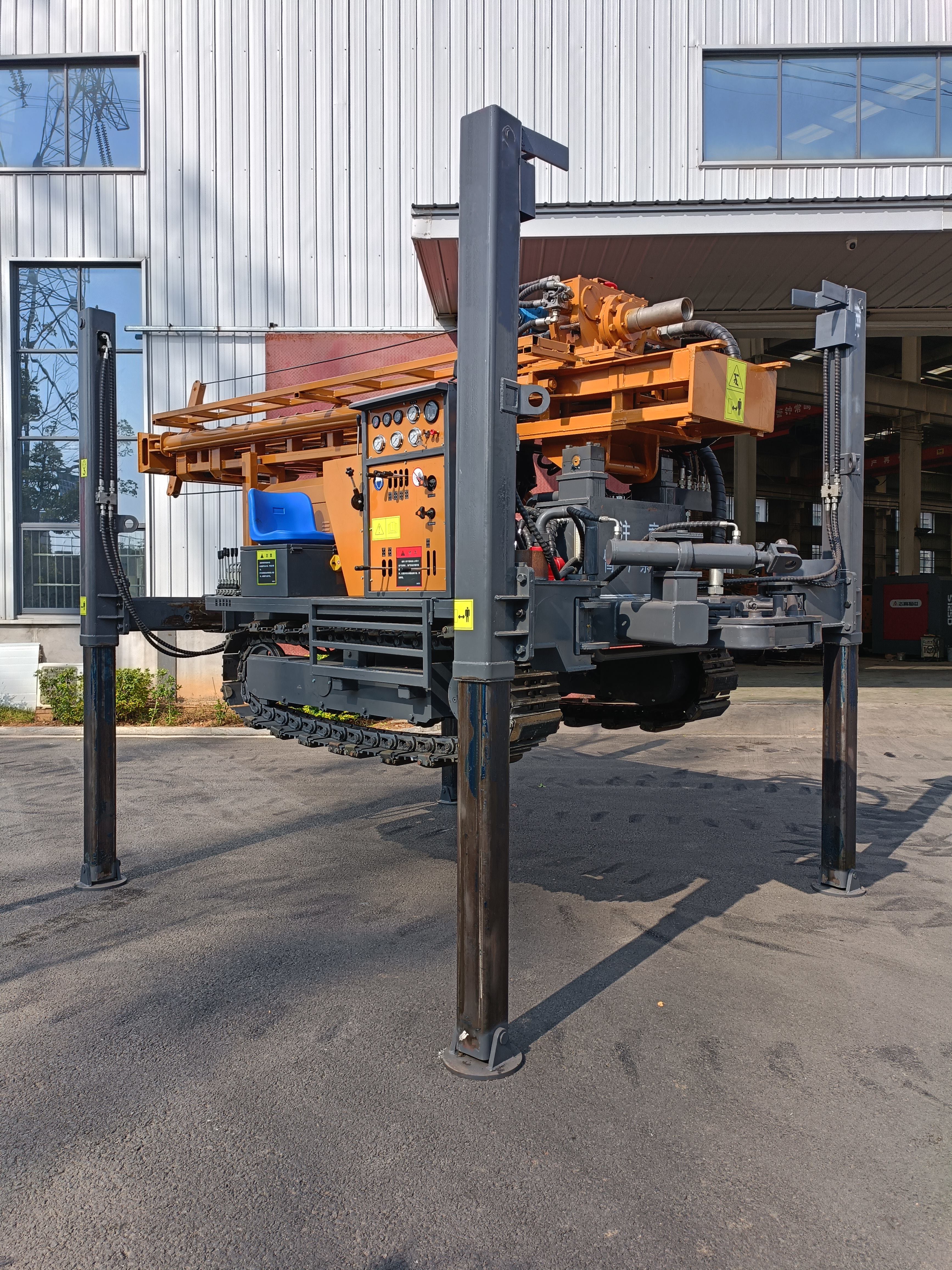

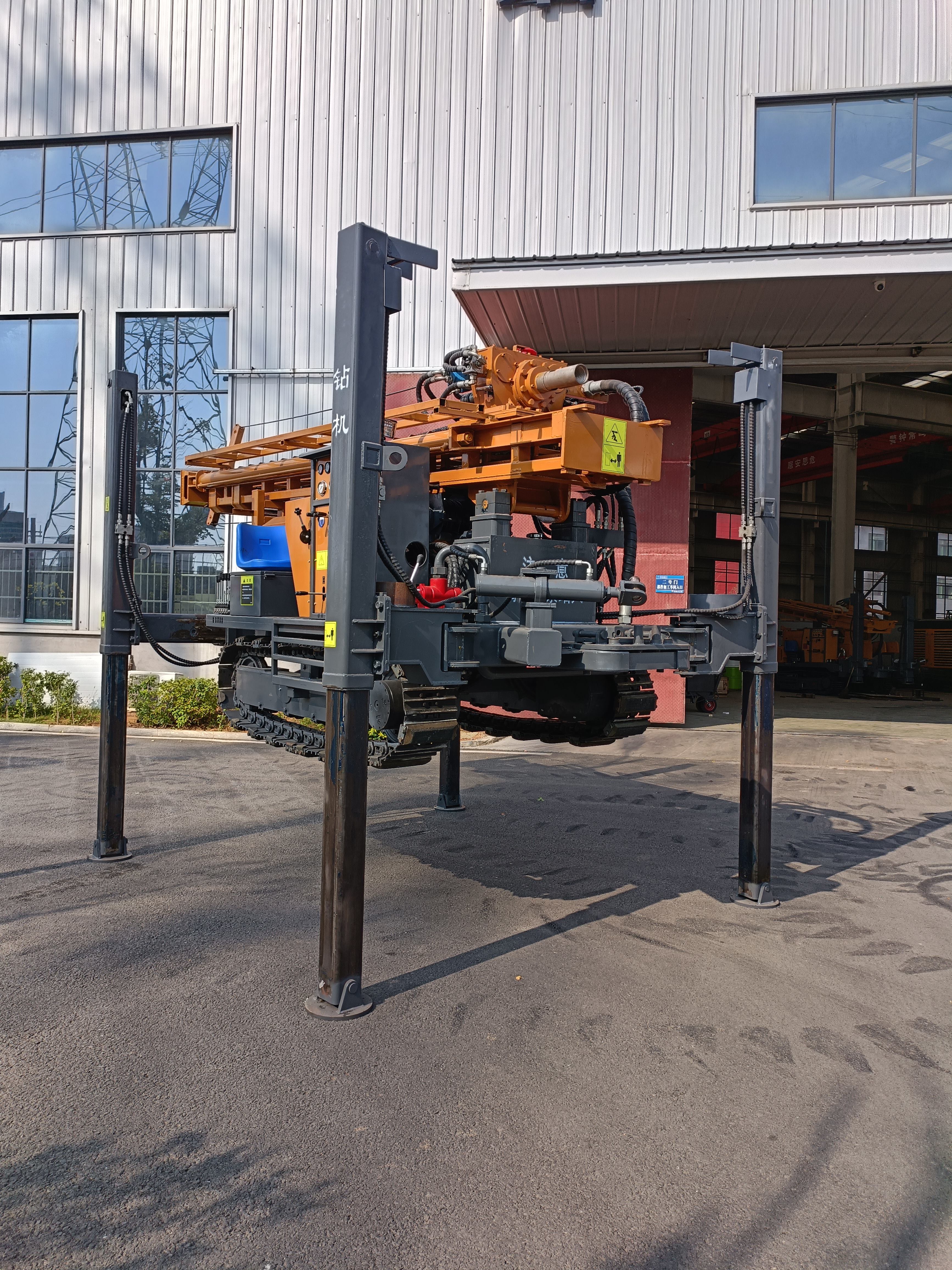

YLZJ350A Light Machine 300 Meter Depth Yucahi 91KW Water Well Drill Rig Pump Air Compressor 350Meter

loading

YLZJ350A Light Machine 300 Meter Depth Yucahi 91KW Water Well Drill Rig Pump Air Compressor 350Meter YLZJ350A Light Machine 300 Meter Depth Yucahi 91KW Water Well Drill Rig Pump Air Compressor 350Meter
YLZJ350A Light Machine 300 Meter Depth Yucahi 91KW Water Well Drill Rig Pump Air Compressor 350Meter YLZJ350A Light Machine 300 Meter Depth Yucahi 91KW Water Well Drill Rig Pump Air Compressor 350Meter
YLZJ350A Light Machine 300 Meter Depth Yucahi 91KW Water Well Drill Rig Pump Air Compressor 350Meter YLZJ350A Light Machine 300 Meter Depth Yucahi 91KW Water Well Drill Rig Pump Air Compressor 350Meter
YLZJ350A Light Machine 300 Meter Depth Yucahi 91KW Water Well Drill Rig Pump Air Compressor 350Meter YLZJ350A Light Machine 300 Meter Depth Yucahi 91KW Water Well Drill Rig Pump Air Compressor 350Meter

YLZJ350A Light Machine 300 Meter Depth Yucahi 91KW Water Well Drill Rig Pump Air Compressor 350Meter

5 0 Reviews

Availability:
Inquire Add to Basket

  • YLZJ350A

  • YOULI

Product Description
ItemYLZJ350A
Maximum borehole depth350m
Hole diameter105-350mm
One-time advance length6.6m
Walking speed2.5km/h
Climbing ability20°
Working wind pressure1.7-3.5Mpa
Air consumption17-35m³/min
Length of drill pipe3/6m
Drill pipe diameter76/89mm
Max Lifting force25T
Max turning torque10000Nm
Rotational speed50-100r/min
Machine weight7500kg
EngineYuchai 91KW
Oil pumpPermco50/50/25
Size5800(4150)*1800*2500mm
Manual valveSanli
Hydraulic power headBM6-390
