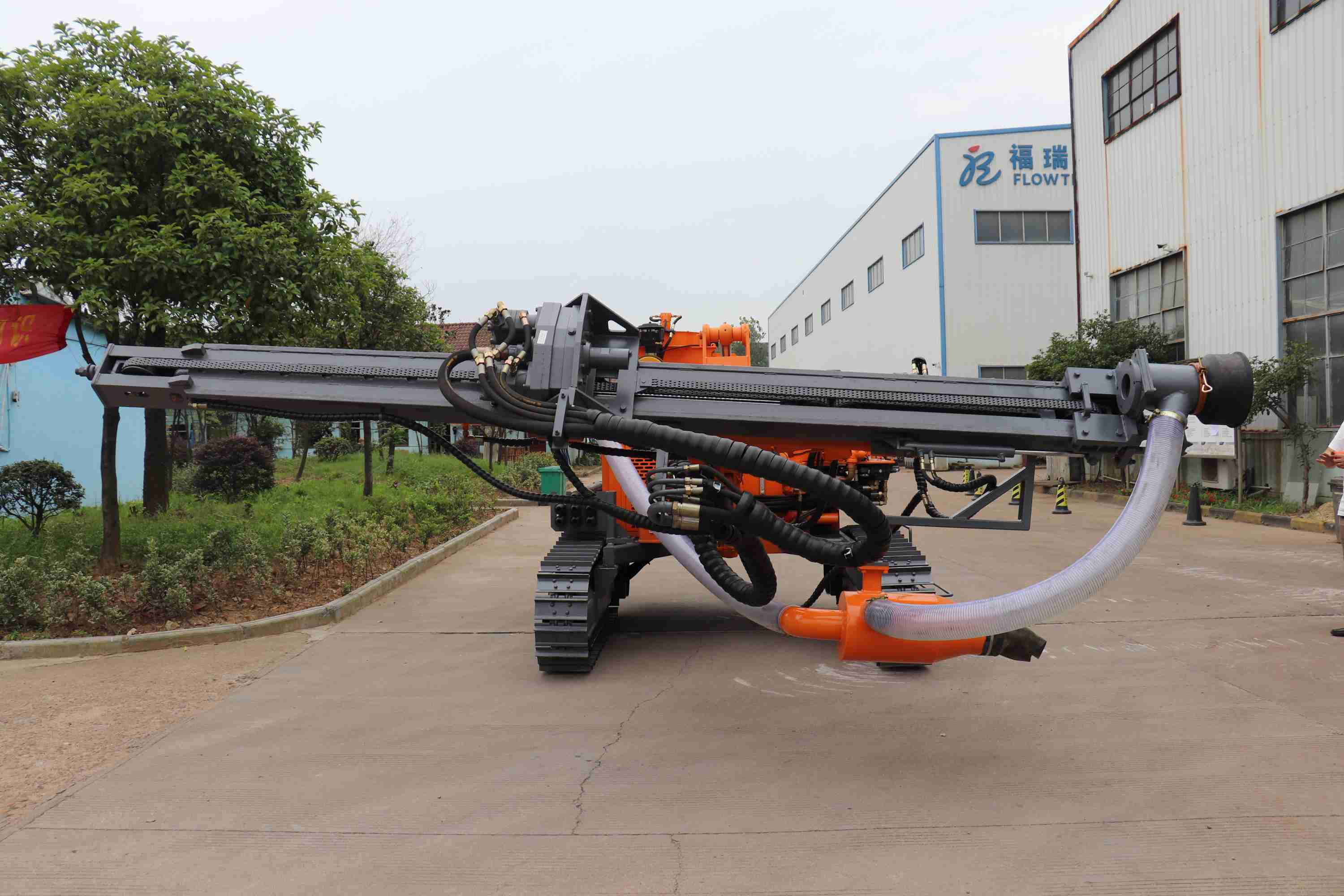

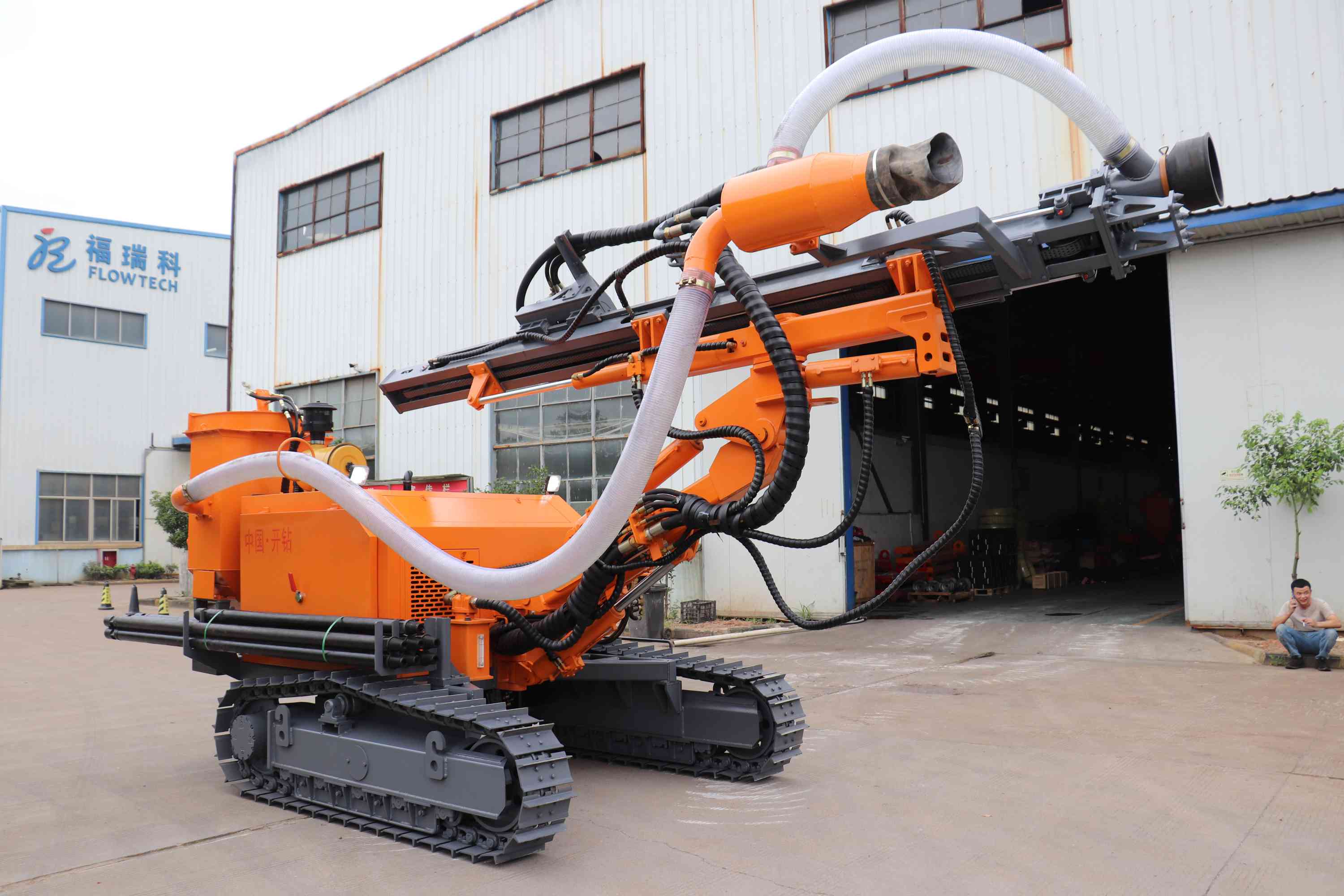

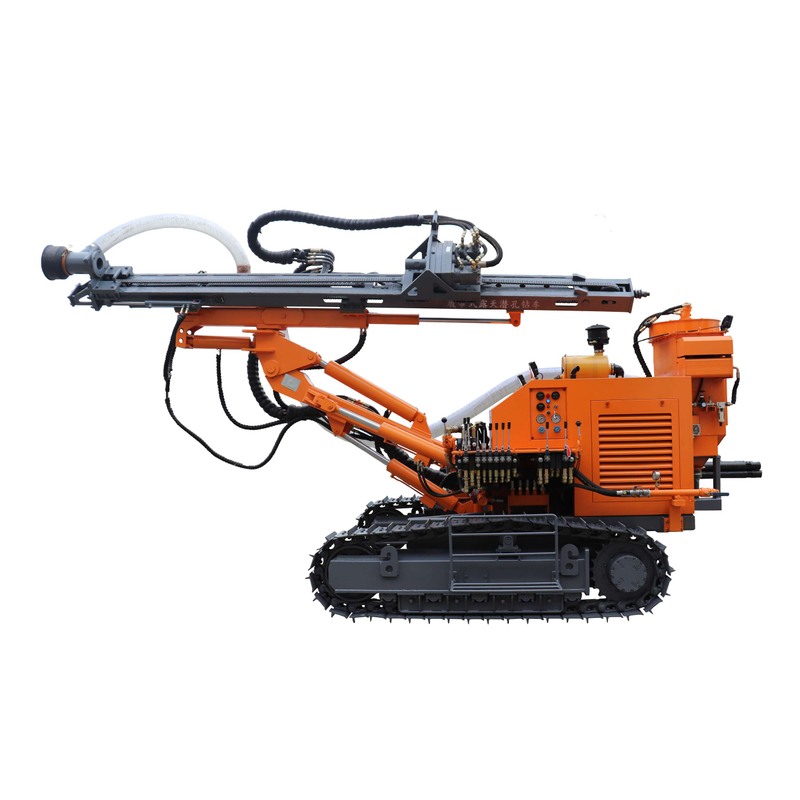

YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine

loading

YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine
YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine
YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine
YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine
YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine
YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine

YL9420 30m Depth Manufacturer Supply 58Kw Mine Hard Rock Drill Rig Machine

5 0 Reviews

Availability:
Inquire Add to Basket
YUCHAI 56KW
Product Description
Drill type
YL9420
Drilling hardness
F6-20
Borehole length
∅90-145mm
Economic hole depth
30m
Rotational speed
0-80r/min
Rotary torque
2600N.m
Lifting force
35000N
Propulsion mode
Cylinder chain
Advance stroke
2000mm
Walking speed
0-2.5Km/h
Climbing ability
35°
Ground clearance
580mm
Machine weight
5500kg
Overall dimension
5300X2280X2550mm
Pitch Angle of slide frame
Altitude 115 ° Altitude 23.5 ° Altitude 145 °
Swing Angle of slide frame
100 ° left 45 ° right 145 ° total
Sliding frame compensation length
900mm
Engine
YC4D80-T21（56/KW2200r/min）
Drill pipe
φ60x2000mm
Working air pressure
0.8-1.6Mpa
Air consumption
10-20m³/min
