Product Description
name

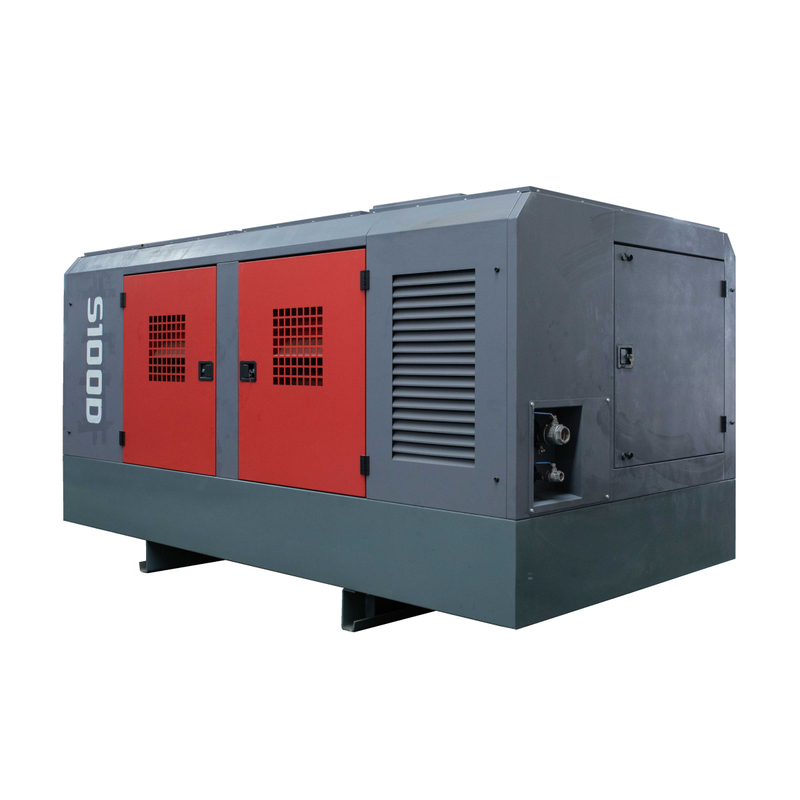

S100D
compressor
Type
Twostageoilcompressionscrew
Exhaust volume
m³/min
31
Exhaustpressure
bar
25
Driving mode
Coupling direct coupling, diesel engine drive
Oil and gas tank capacity
L
130
Lubricating oil quantity
L
80
engine
manufacturer
FAW Xichai
model
CA6DM2-40GAG31-YM10
Form
Water cooled six stroke
Number of cylinders
6
Rated power
kw
309
Rated speed
rpm
1850
No load speed
rpm
1350
Lubricating oil quantity
L
32
Cooling water volume
L
70
Battery
6-QW-220MF*2
Fuel tank capacity
L
420
crew
Long (body / complete machine)
mm
3950
wide
mm
2000
high
mm
2000
Net weight
Kg
4600

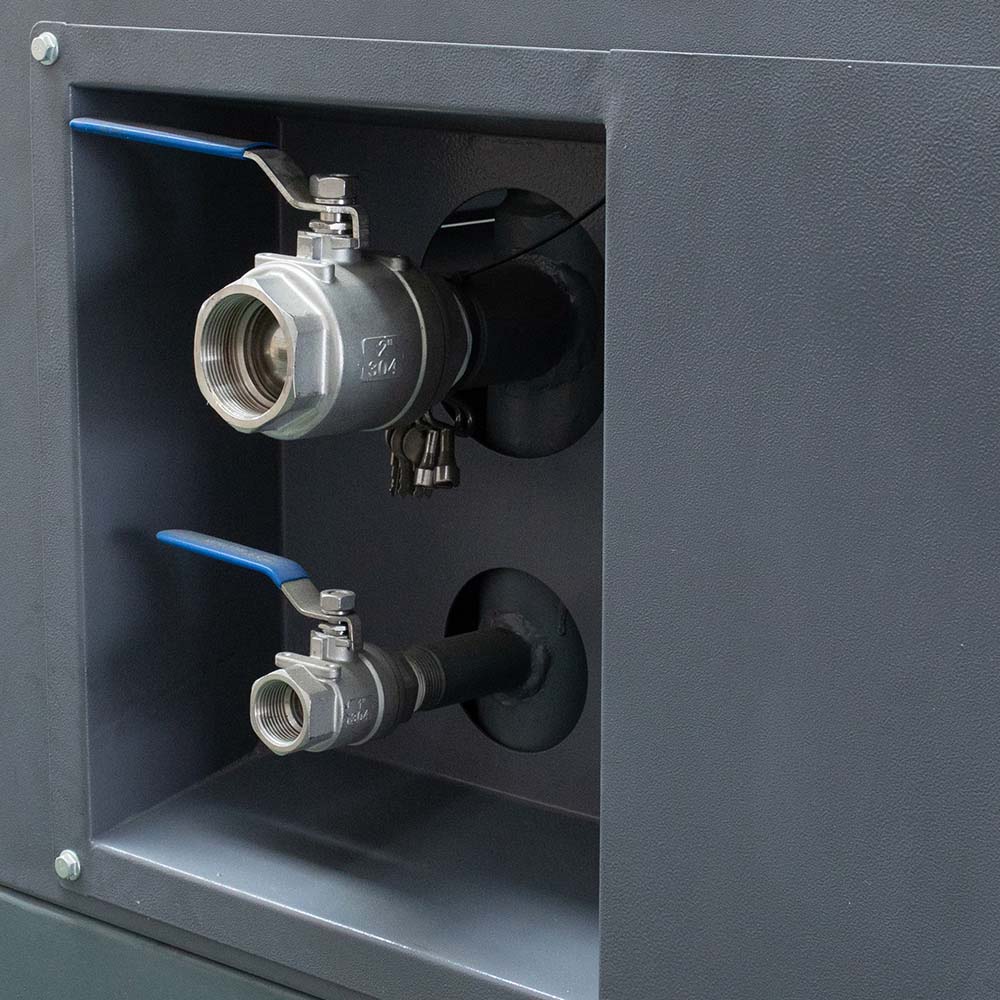

Outlet vent valve
”1-G2” 1-G1”
name
S100D
compressor
Type
Twostageoilcompressionscrew
Exhaust volume
m³/min
31
Exhaustpressure
bar
25
Driving mode
Coupling direct coupling, diesel engine drive
Oil and gas tank capacity
L
130
Lubricating oil quantity
L
80
engine
manufacturer
FAW Xichai
model
CA6DM2-40GAG31-YM10
Form
Water cooled six stroke
Number of cylinders
6
Rated power
kw
309
Rated speed
rpm
1850
No load speed
rpm
1350
Lubricating oil quantity
L
32
Cooling water volume
L
70
Battery
6-QW-220MF*2
Fuel tank capacity
L
420
crew
Long (body / complete machine)
mm
3950
wide
mm
2000
high
mm
2000
Net weight
Kg
4600
Outlet vent valve
”1-G2” 1-G1”
